Water Sewer Socket Newtility Pipe

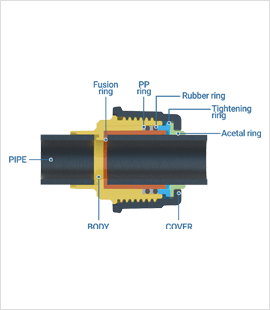

It is a socket type connection pipe which is made up of various components such as rubber ring and acetal ring to completely solve the problems of breakage and leakage of existing joint parts in the construction of water and sewage pipes.

Brand Features

  1. 1It is a 'pipe connecting device' used for connection of water and sewage pipes. It is a patented product not only in Korea but also in Europe, Japan and China.
  2. 2It is a product that dramatically improved the connection part breakage or loosening phenomenon which is shown in socket connection type, heat shrinkage type, welding type, etc. in the past.
  3. 3This facilitates pipe connection work easily. The tightening and connection conditions are also strong, resulting in high water-tightness. As a result of water pressure test, it saves labor and cost.
  4. 4Because the shape of the product does not change, it can be constructed. It is easy to tighten the air because it can be installed in many places simultaneously in water.
  5. 5It is very easy to fasten the pipe because tightening socket is separately provided when cutting the middle portion of the Newtility pipe.
  6. 6It is possible to be disassembled and assembled so that it will be easily removed when foreign substances in the pipe is accumulated.

Product Composition

Sewer

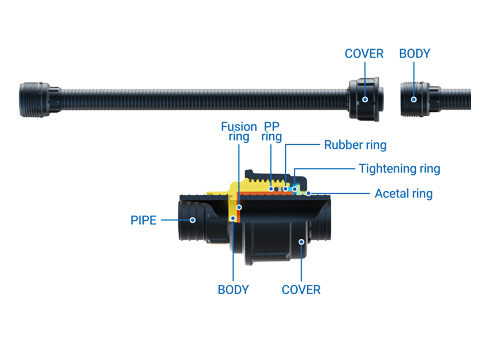

  • · Newtilitygeneral socket

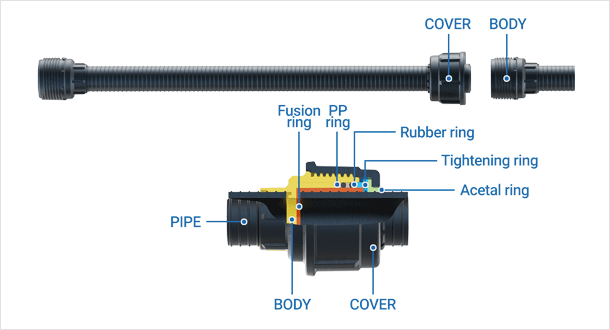

  • · Newtylity pipe section
  • · Newtility pipe specification Note) 1. Internal tolerance:±2% 2.High tolerance:±8% 3.Length of main body:6m
    Name 150 200 250 300 350 400 450 500 600
    outer diameter 175 228 280 338 394 450 508 562 678
    thickness 12.5

    14.0

    		 15.0 19.0 22.0

    25.0

    		 29.0 31.0 39.0
    the length of main body 6 6 6 6 6 6 6 6 6
  • New Tillitty reducing tee Note)1. Permissible tolerance-L:50mm / A:50mm
  • Name Main pipe
    (d1)    		 200 250 300 350 350 400 450 500 500 600 600
    Outer diameter Main pipe
    (d2)    		 150 150 150
    ~
    250    		 150
    ~
    250    		 300 150
    ~
    350    		 150
    ~
    400    		 150
    ~
    350    		 400
    ~
    450    		 150
    ~
    350    		 400
    ~
    450
    Size L

    800

    		 800 800 800 1000 1000 1000 1000 1200 1000 1200
    Length A 350 350 350 350 350 350 350 350 350 350 350
  • New Tillitty reducing tee Note)1. Permissible tolerance-L:50mm / A:50mm
  • Name 150 200 250 300 350 400 450 500 600
    L (mm) 970 1150 1150 1150 1150 1150 1450 1450 1450
    A (mm) 400 450 450 400 400 350 450 450 400
  • Newtility 45˚ Elbow 주)1. Permissible tolerance-L:50mm / A:50mm
  • Name 150 200 250 300 350 400 450 500 600
    L (mm) 300 300 300 300 400 400 400 500 500
    A (mm) 480 512 512 512 682 682 682 853 853
  • Newtility 90˚ Elbow Note)1. Permissible Tolerance-L:50mm / A:50mm
  • Name 150 200 250 300 350 400 450 500 600
    L (mm) 300 300 300 300 400 400 400 500 500
    A (mm) 560 592 611 631 822 842 852 1052 1093

Water pipe

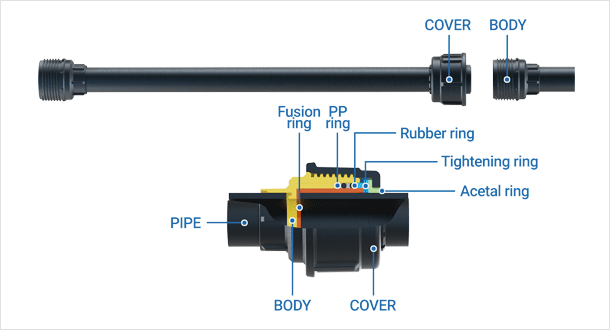

  • · Newtility general socket
  • 90˚ elbow Use when laying the water pipe at the bending point of the 90˚ elbow
  • Name (mm) 63 90 110 160 225
    Production form Injection Injection Injection Injection Injection
    size A

    105

    		 152 240 324 400
    B 68 93 181 241 283
  • 45˚ elbow Use when laying the water pipe
  • Name (mm) 90 110 160 225
    Production form Injection Injection Injection Injection
    size A 270 275 360 450
    B 130 135 180 195
  • Fixed Tee Use when laying the water pipe
  • Name (mm) 63 90 110 160 225
    Production form Injection Injection Injection Injection Injection
    size A 68 130 171 210 246
    B 134 260 342 420 492
  • Reducer Use when laying the water pipe
  • Name (mm) 63 90 110 160 225 225 225
    Production form 40 63 90 110 90 110 160
    size A 30 22 94 125 85 126 160
    B 112 119 252 313 244 337 244
  • Reducing tee Use when separating different diameter of reducing tee
  • 본관/지관 20 25 30 40 63 90 110 125 160
    63 O O O O
    90 O O O O O
    110 O O O O O O
    160 O O O O O O O O
    225 O O O O O O O O O
  • Cap Use when settling the end part of the pipe
  • Name (mm) 63 90 110 160 225
    Production form Injection Injection Injection Injection Injection
    size A 27 64 91 115 115
    B 40 110 150 200 227
  • Flange Use when connecting flanging sluice value and other kinds
  • Name (mm) 63 90 110 160 225
    Pen Flange Adapter D 101 128 154 215 265
    L 83 122 121 120 120
    T 19 21 22 25 25
    plate
    plange    		 d 120 150 175 240 290
    h 19 19 19 23 23
    H 16 18 18 22 22
    k.s 4 8 8 8 12
    sluice value 4 4 8 8 8

· Material Type

  • P301E Polyethylene Ployethylene

    Polyethylene material is an innovative material for sanitary water supply because it has no corrosion, no capillarity but non-toxic and odorless.
    Especially, it has good durability in all areas and coastal areas. It is also suitable as piping material for industrial water because it has excellent acid and alkali resistance.

  • J320 Polypropylene Ploypropylene

    Polypropylene fiber has a specific gravity of 0.91 which is lower than water and is the lightest and whitest among natural synthetic resins.
    Also, it has high strength and abrasion resistance, excellent chemical resistance and elastic properties.

  • EPDM Ethylene propylene rubber Ethylene propylene rubber

    It is an amorphous polymer substance obtained by the copolymerization of ethylene and propylene.
    EPDM is chemically stable, and the physical properties of vulcanized substances are show the characters of natural rubber and SBR.

· Product Material Characteristics

  • Excellent weatherproof and ozone resistance

    It has excellent stability to maintain initial physical properties over 20 years even when exposed to ultraviolet rays and ozone.

  • Heat resistance and cold resistance

    The temperature range is -40 ℃ to 150 ℃, and there is almost no change in quality even in harsh regions where climate change conditions is worse such as tropical and the cold region.

  • High EPDM content

    Dukwon products are different from low grade SHEET, which is called as "heat fusion SHEET", with less than 50% EPDM content. In addition to the essential additives for thermal fusion bonding, the EPDM content is mostly composed of about 70%, which is very excellent in performance.

  • Reliability of jointin

    By performing jointing between SHEETs as welding (heat fusion), it resolved the previous JOINT part which caused crack due to shrinkage and expansion depending on climate conditions.

· Newtyility pipe junction sequence

  1. 01. Preparing for assembly
  2. 02. Maximizing tightness by hand (pipe body, manual tightening of cover)
  3. 03. Finishing with final jig
  4. 04. Completion of work

· Sewage pipe

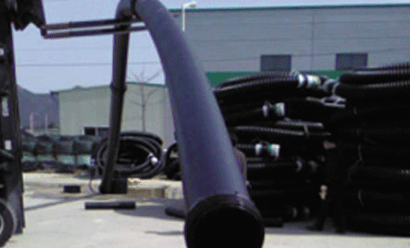

  1. water pressure 10kg
  2. When the water pressure is 12kg, the socket is OK but the pipe ruptures.

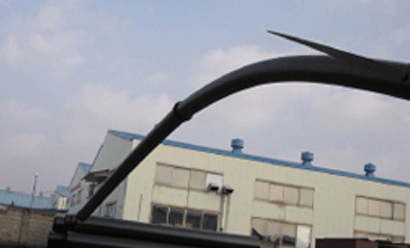

  3. No abnormality in the socket even if the load is more than 2 tons.

· Water pipe

  1. Water pressure 38kg
  2. Before the experiment, the pipe thickness is increased up to 110mm. After the experiment, the pipe thickness is increased to 122mm.
  3. Water pressure 38kg is inflated

· Construction site

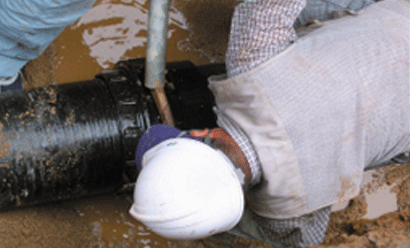

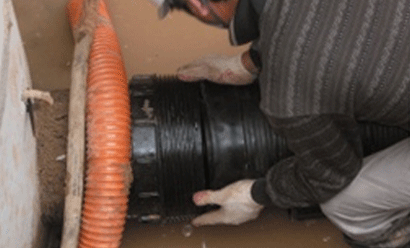

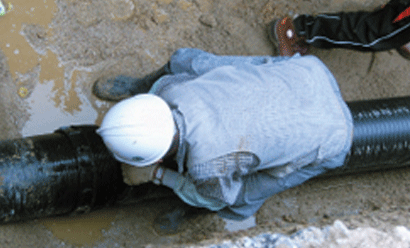

  1. Newtility pipe ready to assemble
  2. Tight by hand as much as possible
  3. Finishing with jig jag

· Supervision test Field

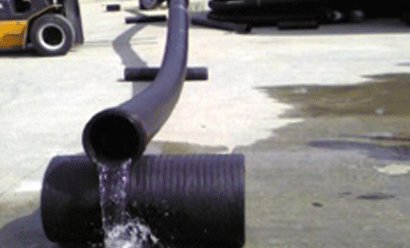

  1. Filling and draining water in pipe
  2. Filling water in pipe and test the connection part
  3. Connection socket supervision test
